Overview
When configuring the Entity Manager in Bizagi, you can rely on the use of traces for error control and diagnostics.
The traces allow you to detect any issues related to entity management and retrieve more details.
Entity Manager traces
Whenever you are debugging an Entity Manager invocation (in Development environments), or whenever you wish to retrieve further details about a failed invocation, you may choose to turn on the Entity Manager traces. Within these traces, you can delve deeper into two specific types:
•User requests
•Validation of request sessions
Click the hyphen symbol ( - ) to choose the level of detail you want to apply to this trace. You can choose among:
•None
•Information
•Warning
•Error
|
Keep in mind that Entity Manager traces can be enabled at any time; however, it is strongly recommended to enable them only temporarily when needed, and to disable them afterward.
Changes in this configuration will most likely require a reset in your Bizagi server's services. |
Enabling these traces is useful to track down, after an error in the application, the exact point where said error has happened.
How to trace your Entity Manager execution
With the following steps, we will illustrate how to use traces to detect and diagnose issues in Entity Manager invocations.
View Authentication traces
1.Setup the traces configuration in Bizagi Studio, as mentioned at the beginning of this article.
2.Through the Tracing options, enable the trace for All.

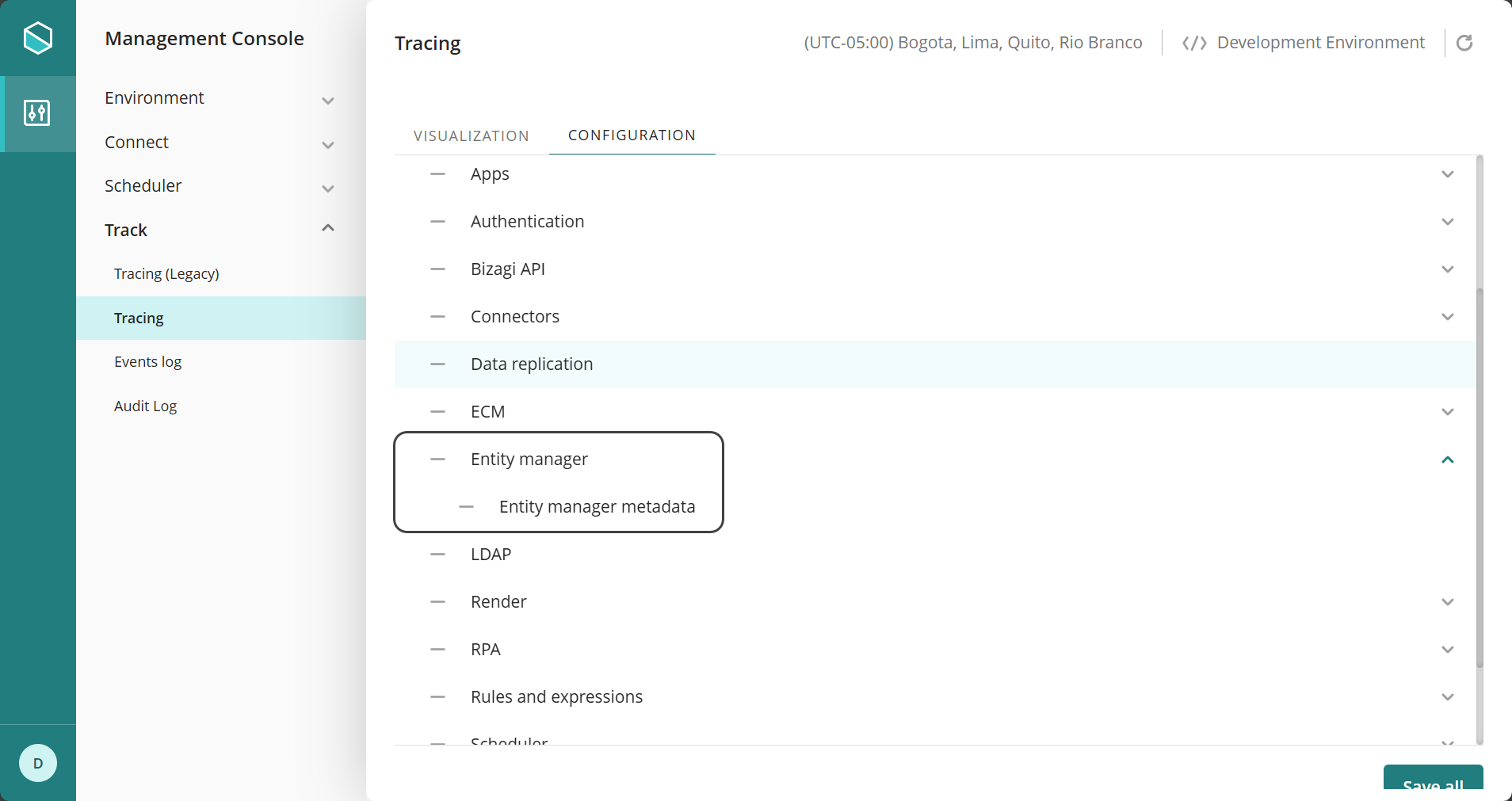

3.In the Management Console: Go to Track category and open it to see more options. click Tracing. Locate the Visualization Tab and in the Category drop-down list, click All.
A list appears where you can see all the generated files.
Last Updated 5/16/2025 10:12:42 AM
